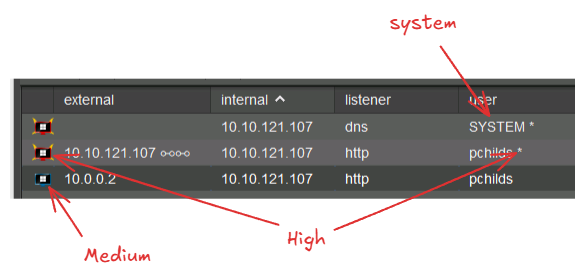

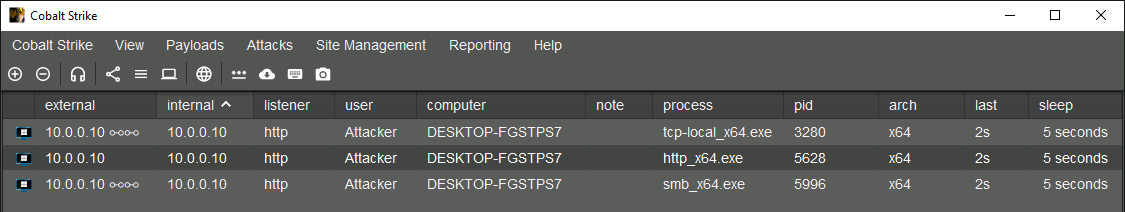

  • 7.2 Session table fields
  • 7.3 Tasking and the job queue

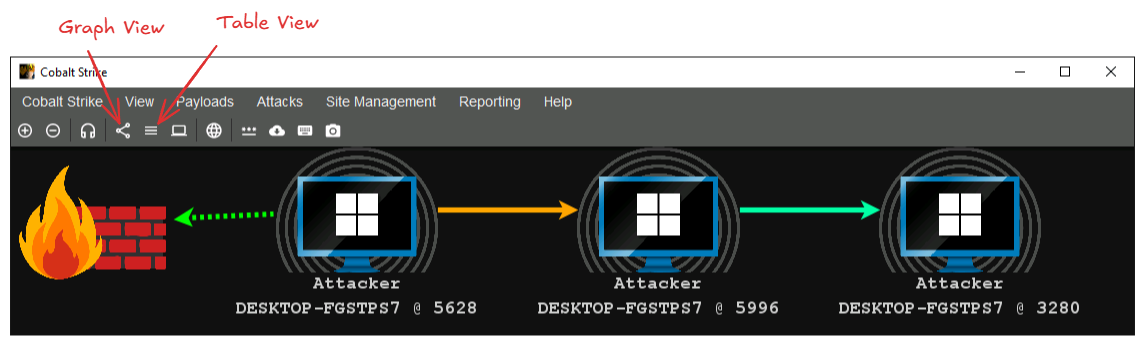

• 8. Session graph view
• 9. Review prompts and remaining gaps
  • The shortest version to remember

Cobalt Strike Primer

Quick references: task-first command sheet · detailed command reference · exam navigator

These notes are for authorized red-team training and lab environments only. Cobalt Strike is dual-use software. The concepts below should be applied only within an explicitly scoped engagement.

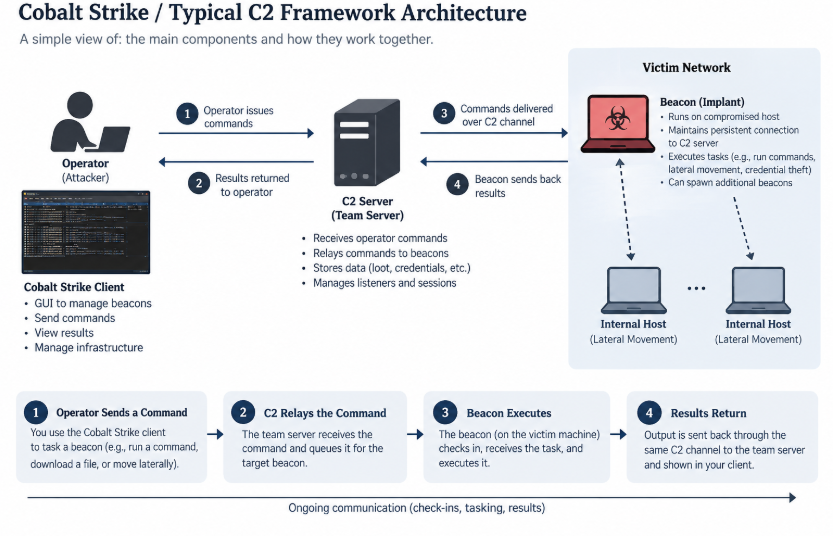

1. The basic mental model

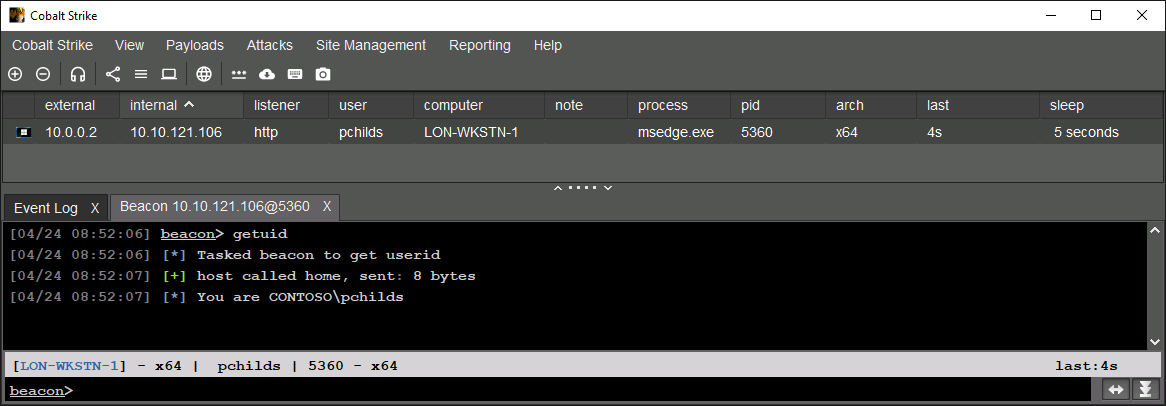

Cobalt Strike is a platform for controlling Beacon, an asynchronous post-exploitation agent. In a simplified model:

Operator
   │
   │ Cobalt Strike client
   ▼
Team Server
   │
   │ C2 listener / tasking channel
   ▼
Beacon on a target

Beacon periodically checks in, receives queued jobs, executes them on the endpoint, and returns the results. It is not the same thing as the Cobalt Strike client or Team Server.

The original notes described Cobalt Strike as a tool for maintaining stealthy, long-term access. That is a useful description of the capability, but it should not be read as a guarantee: Beacon traffic, process behavior, payload artifacts, and infrastructure can all be detected.

1.1 The three main components

Beacon

• Beacon is the post-exploitation agent running on the target endpoint.
• It fetches tasks from the Team Server, executes them locally, and sends results back.
• It is commonly represented as a Windows PE/DLL payload internally, although Cobalt Strike can package it into different artifact types.
• Beacon is asynchronous: the operator queues work and Beacon performs it on a later check-in rather than maintaining an interactive shell for every task.

Team Server

• The Team Server is the central controller for Beacon payloads.
• It hosts or coordinates the relevant listener infrastructure, stores engagement data, and manages logging.
• It is the service that needs to remain available for connected clients and Beacons.
• A listener is configured on or associated with a Team Server, but not every listener means that the Team Server itself owns the final network connection. SMB and TCP peer-to-peer listeners are important exceptions.

Cobalt Strike client

• The client is the operator interface used to connect to one or more Team Servers.
• It displays Beacon sessions, queues commands, shows logs and engagement data, and manages much of the operator workflow.
• The client is not the persistent controller. The Team Server is the component that remains online and handles Beacon communication.

1.2 Can there be multiple Team Servers?

Yes. Cobalt Strike does not require multiple Team Servers, but its client/server architecture allows an organization to use them when operational separation is useful.

Possible reasons include:

• separate authorized engagements;
• different teams, regions, or infrastructure boundaries;
• separating operational phases or risk domains; and
• limiting the impact of a server or channel being discovered.

                 RED TEAM

        ┌──────────┼──────────┐
        ▼          ▼          ▼
      TS #1      TS #2      TS #3
        │          │          │
     Client A   Client B   Client C

The important distinction is:

Cobalt Strike does not need multiple Team Servers. Its architecture permits multiple separately managed Team Servers when the engagement requires them.

An operation may also use dedicated infrastructure for different phases, but that is an operational design choice, not a requirement of Beacon.

2. Listeners and communication paths

2.1 What is a listener?

A listener is a Beacon communication configuration. It defines how a particular Beacon should communicate, including the protocol, destination information, and other C2 parameters.

The listener is selected when generating a payload. The resulting Beacon carries the configuration needed to use that communication path.

Different listener types exist because different targets and network segments have different connectivity and monitoring conditions. The objective in an authorized assessment is to model or test realistic communication paths - not simply to make traffic “look normal.”

Common listener families in these notes are:

• HTTP or HTTPS;
• DNS;
• SMB; and
• TCP.

Do not confuse:

Listener = communication configuration
Beacon   = agent that uses the configuration

Multiple Beacons can use the same listener. Multiple listeners are useful when Beacons need different C2 configurations, not merely because there are many Beacons.

2.2 HTTP/S Beacon

An HTTP/S Beacon communicates through HTTP GET and POST requests. In a simplified flow:

Beacon ── HTTP/S request ──► Team Server or redirector
       ◄─ HTTP/S response ───

The Beacon may use one request pattern to retrieve tasks and another to return results. The Team Server provides the server-side handling for the configured listener.

HTTP hosts

An HTTP host is a domain name or IP address to which the Beacon sends requests. It may resolve directly to the Team Server or to an intermediary such as a redirector.

Redirectors

A redirector is an intermediary between the public-facing C2 address and the Team Server:

Beacon ──► public host / redirector ──► Team Server

The redirector can provide infrastructure separation and routing control. It does not make the operation invisible, and it introduces another system that must be configured, monitored, and included in the engagement scope.

Host rotation

When a listener has multiple HTTP hosts, a host rotation strategy determines how the Beacon chooses among them. The notes identify these conceptual strategies:

1. Round robin: use hosts sequentially from top to bottom.
2. Random: select a host unpredictably.
3. Failover: continue using one host until a failure condition occurs, then move to another.
4. Rotation: change hosts according to a time- or cycle-based rule.

Host rotation can provide resilience, but it can also create a distinctive pattern. It should be understood as a traffic-management choice, not automatically as an OPSEC improvement.

HTTP staging host

A stager is a small bootstrap program that retrieves the larger payload stage and transfers execution to it. The stager is not Beacon itself.

Small stager ── retrieves ──► full Beacon stage

This is useful when an initial delivery or exploitation path imposes a size limit. It also means the initial network request may retrieve a payload from the staging infrastructure before normal Beacon C2 behavior begins.

When a staging host “resolves back to the Team Server,” the path may be direct or indirect:

Direct:   Beacon/stager ──► Team Server
Indirect: Beacon/stager ──► redirector ──► Team Server

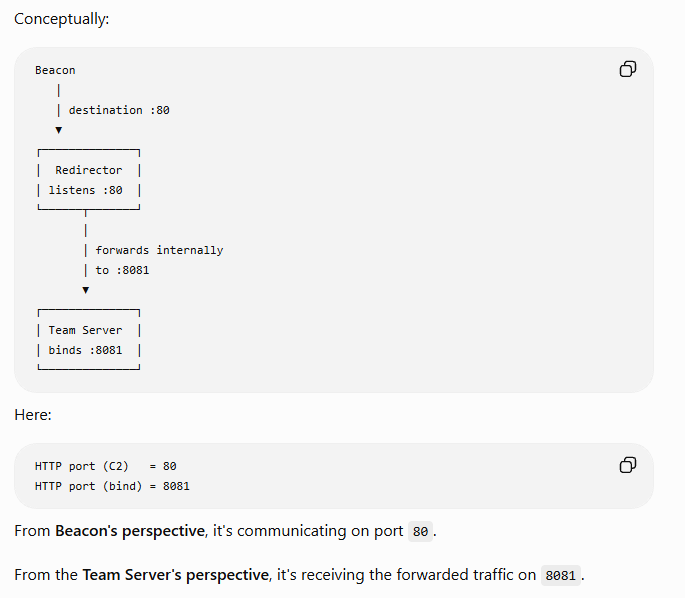

HTTP C2 port and bind port

• HTTP C2 port: the external or destination port the Beacon attempts to connect to.
• HTTP bind port: the local port on which the Team Server's built-in web service listens.

They are often the same, but they do not have to be. A redirector or other front-end can accept traffic on one external port and forward it to a different port on the Team Server. This can allow multiple services or listeners to coexist, but it adds routing complexity.

The notes refer to this as “port bending”; the clearer mental model is simply external destination port versus backend listening port.

HTTP Host header and domain fronting

The HTTP Host header identifies the host requested at the HTTP layer:

GET /some-path HTTP/1.1
Host: app.example.com

Domain fronting historically relied on a difference between a visible outer connection destination and an HTTP host name used by intermediary infrastructure. It is not universally available today: modern CDNs and cloud providers commonly prevent or restrict it. Treat it as a historical concept and a platform-dependent behavior, not a generally reliable technique.

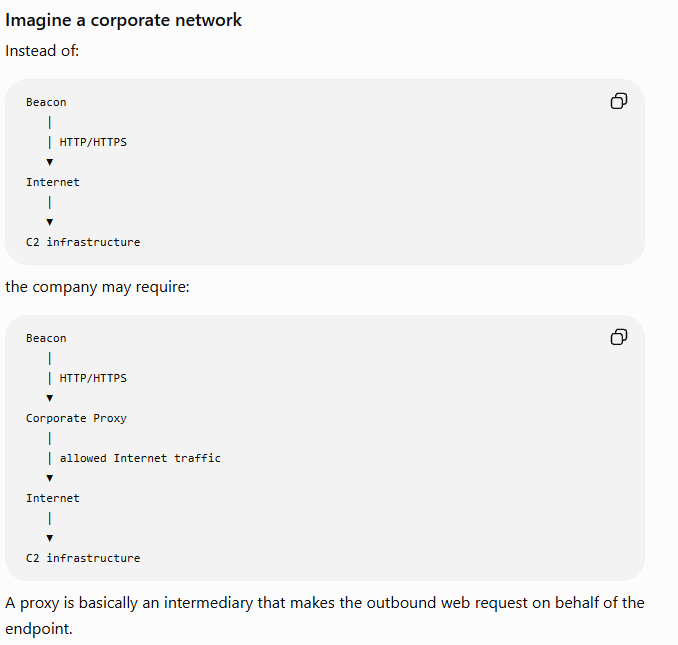

HTTP proxy behavior

Beacon may use the system's proxy settings by default. Depending on the payload and configuration, explicit HTTP or SOCKS proxy information can also be supplied. The notes correctly flag that proxy handling for Beacon traffic and proxy handling for an initial payload stager are separate concerns; configuring one does not automatically configure the other.

A proxy can be relevant when a host has no direct Internet route, but proxy use is also visible to defenders through proxy logs and endpoint behavior.

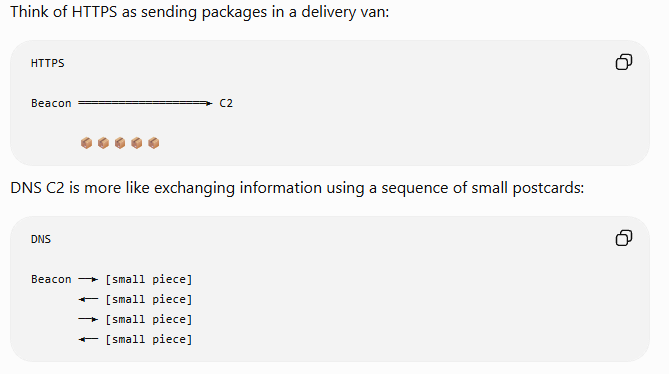

2.3 DNS Beacon

A DNS Beacon uses DNS queries and responses as its communication channel. The controlled domain's authoritative DNS infrastructure receives queries, and changing subdomain labels can carry encoded data:

<encoded-small-message>.controlled-domain.example

Ordinary lookup:  www.example.com?
Beacon-style:    <encoded-data>.controlled-domain.example?

DNS is highly constrained compared with HTTP/S. Data is split into small chunks and transferred over multiple queries. This provides a different network path, not a high-bandwidth replacement for HTTPS.

The initial metadata behavior can also differ. Because DNS has limited bandwidth, a DNS Beacon may initially appear as a “ghost” session until the operator interacts with it and requests enough information for the client to populate the session.

7. Domain Name System

2.4 SMB Beacon

An SMB Beacon is a peer-to-peer Beacon. It does not normally communicate directly with the Team Server over SMB. Instead, it communicates with another Beacon over SMB, often through a named pipe, and the parent Beacon has the route to the Team Server.

Computer B ── SMB ──► Computer A ── HTTPS ──► Team Server
 child                  parent

This is useful conceptually when Computer B cannot reach the external C2 infrastructure but can reach Computer A over the internal network.

                         C2
                          ▲
                          │ HTTPS
                          │
                     Beacon A
                     (parent)
                          ▲
                          │ SMB / named pipe
                          │
                     Beacon B
                     (child)

The key distinction from HTTP/S is that the SMB listener is a payload-generation configuration. The Team Server is not simply waiting for the child Beacon on an SMB socket in the same way that it handles an egress HTTP/S listener.

Target A                         Target B
┌──────────────┐               ┌──────────────┐
│ parent       │◄── SMB/445 ───│ child        │
│ SMB Beacon   │               │ SMB Beacon   │
└──────┬───────┘               └──────────────┘
       │ normal C2
       ▼
  Team Server

Server Message Block

2.5 TCP Beacon

A TCP Beacon is also a peer-to-peer Beacon. It uses a TCP connection to communicate through a parent Beacon rather than directly to the Team Server.

                         Team Server
                              ▲
                              │ HTTPS
                              │
                          Beacon A
                          (parent)
                              ▲
                              │ TCP
                              │
                          Beacon B
                          (child)

The choice between SMB and TCP depends on the connectivity and allowed protocols in the authorized network. It is not simply a matter of one being “better.” SMB may fit an existing Windows named-pipe path; TCP may fit a permitted socket path.

3. Payloads, loaders, and artifacts

These terms are easy to mix together. Keep them separate:

Beacon
  actual post-exploitation agent
      │
Beacon configuration
  how this Beacon communicates and behaves
      │
Loader
  prepares and starts the Beacon image
      │
Artifact / payload format
  EXE, DLL, raw position-independent code, script, and so on
      │
Execution
  the resulting Beacon process, thread, or in-memory agent

Staging is a separate dimension:

Staged:   small stager → retrieve full Beacon → run it
Stageless: full Beacon already present → run it

“Staged versus stageless” describes how the Beacon content is delivered. “EXE versus DLL versus raw shellcode” describes how the content is packaged. They are related, but they are not the same choice.

3.1 Beacon as a PE/DLL

Windows executables and DLLs normally use the PE (Portable Executable) format. A PE is a structured executable image, not merely a sequence of CPU instructions:

┌─────────────────────────┐
│ PE headers              │
├─────────────────────────┤
│ .text: executable code  │
├─────────────────────────┤
│ .data: program data     │
├─────────────────────────┤
│ imports and metadata    │
├─────────────────────────┤
│ relocations / sections  │
└─────────────────────────┘

When Windows loads a DLL normally, the Windows loader maps the image, resolves dependencies, applies relocations where necessary, sets memory protections, and transfers control to the appropriate entry point. If Beacon bytes are already in memory but have not gone through the normal DLL-loading path, some component must perform the equivalent preparation.

3.2 What the loader does

The loader is not Beacon. Conceptually, its responsibilities are:

Loader
  ├─ prepare memory
  ├─ map or load the Beacon image
  ├─ resolve required dependencies
  ├─ perform other PE-loading work
  └─ transfer execution to Beacon

This is why the notes distinguish the agent from the loading mechanism. In-memory execution also has detection and stability consequences; “in memory” does not mean “undetectable” or “safe.”

3.3 Reflective loading

In a normal loading path:

DLL on disk → Windows loader → DLL running

Reflective loading broadly refers to loading an image from a memory representation using a loader associated with the payload or supplied separately:

PE/DLL bytes already in memory
          │
          ▼
   reflective/external loader
          │
          ▼
   mapped image running

The phrase “reflective loading means the DLL loads itself” is a useful historical shorthand, but it is too absolute. The exact loader design depends on the artifact and framework version.

3.4 Stomped versus prepended loaders

The short version is about where the reflective loader sits:

flowchart LR
  subgraph Legacy["Legacy stomp-style layout"]
    A["Beacon PE<br/>contains DOS stub + exported ReflectiveLoader"] --> B["ReflectiveLoader maps Beacon"]
    B --> D["Beacon initialized"]
  end
  subgraph Prepended["Prepended layout"]
    E["Separate loader<br/>prepended before PE"] --> F["Beacon PE<br/>export not required"]
    F --> G["Beacon mapped and initialized"]
  end

A compatible prepended loader can load a PE without Beacon's exported ReflectiveLoader function. It also separates the loader from the PE, which can make the loading process more reusable. The loader may decode, decrypt, or decompress the PE first, provided it knows how to reverse the transformations. Support depends on the chosen loader and its configuration.

This makes prepended loaders more flexible in some designs; it does not make them inherently stealthier. The loader, artifact, memory behavior, and defensive sensors still matter.

Terminology note: Cobalt Strike called the legacy option StompLoader; stomppe is a separate setting that changes PE header values in the mapped image. Cobalt Strike 4.11 made PrependLoader the default, and 4.12 removed StompLoader, so this comparison is version-dependent.

4. Staged and stageless payloads

Cobalt Strike calls a full Beacon artifact that needs no separate stage stageless. The course notes also use stateless for this idea.

flowchart LR
  subgraph Staged["Staged"]
    S["Small stager<br/>No built-in Beacon security features"] -->|"requests and retrieves"| H["Staging host"]
    H --> P["Separate stage<br/>Full Beacon + Team Server public key"]
    P --> B["Beacon starts"]
    B -->|"encrypted session metadata"| TS["Matching Team Server"]
  end
  subgraph Stageless["Stageless / stateless"]
    A["One artifact<br/>Full Beacon + Team Server public key"] --> B2["Beacon starts"]
    B2 -->|"encrypted session metadata"| TS2["Matching Team Server"]
  end

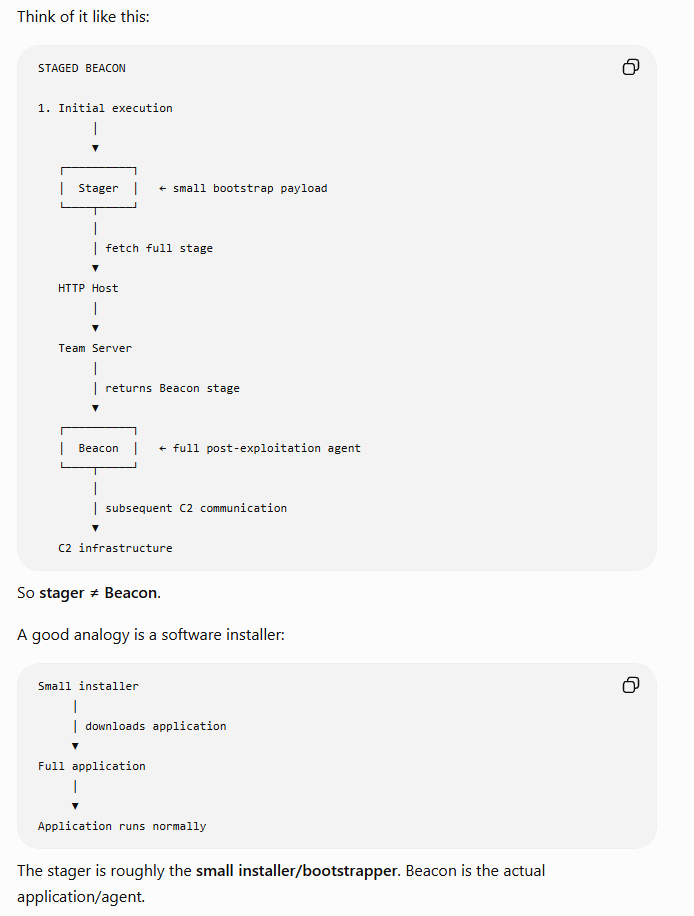

4.1 Staged payloads

A staged payload has two parts:

1. a small stager or bootstrap; and
2. a larger stage, which contains the full Beacon payload.

The stager retrieves the separate stage and passes execution to it. Cobalt Strike describes its stagers as small programs, often hand-optimized assembly. That keeps the bootstrap compact, but leaves less room for extra features.

The initial stage fetch is a trust boundary: the stager does not have Beacon's built-in payload security protections. If someone can interfere with that exchange, the stage may be exposed to interception or replacement; the exact risk depends on the transport and staging infrastructure.

Course-size example The lesson's figures, 890 bytes for a stager and 307,200 bytes for a full Beacon artifact, illustrate the size difference. They are not fixed sizes; architecture, options, listener configuration, and version affect output.

Staging can help when a delivery method has a strict size limit. It also adds a network retrieval step and may expose payload configuration to anyone able to request the stage from the staging server.

4.2 Stageless payloads

A stageless payload contains the full Beacon in the generated artifact, so it does not retrieve a separate stage before Beacon starts. The Team Server's public key is embedded in the Beacon payload. The larger artifact trades away the separate stage-fetch step.

4.3 Payload staging and exposure

The vendor documentation notes that staging can expose payload configuration to anyone who can request the stage from the staging server. This is an OPSEC and exposure consideration, separate from the cryptographic protections Beacon uses after it starts.

5. Payload security and guardrails

5.1 Beacon-to-Team-Server trust

Cobalt Strike generates a public/private key pair unique to the Team Server. The public key is embedded in Beacon's payload (in the stage for staged payloads, or in the full artifact for stageless payloads). Beacon uses it to encrypt session metadata for that Team Server. The metadata carries a random session key; the Team Server uses that session key to encrypt tasks and decrypt Beacon's output.

Compared with staged delivery, stageless avoids the initial stager fetch that lacks Beacon's built-in security. These key-based protections apply only once Beacon starts; they do not secure the delivery artifact or host before execution.

5.2 Guardrails

Guardrails are conditions that can prevent a stageless payload from running unless the expected environment matches. The original notes list examples such as:

• IP address;
• username;
• hostname;
• domain membership; and
• other target-environment criteria.

The purpose is to reduce the chance that a payload forwarded outside the authorized environment or opened in a sandbox will execute. Guardrails are not a substitute for access controls, and they should never be treated as a guarantee that a payload cannot be analyzed.

6. Artifact generation

Cobalt Strike takes the configured Beacon and listener information, then packages the result into an artifact suitable for the selected delivery or execution context.

Generic Beacon
      │
      ▼
Add listener/C2 configuration
      │
      ▼
Configured Beacon
      │
      ▼
Apply loader and artifact-generation process
      │
      ▼
Raw payload representation
      │
      ├───────────────┬───────────────┬───────────────┐
      ▼               ▼               ▼
     EXE             DLL          raw code/script

The exact pipeline varies by package, architecture, and Cobalt Strike version. It is better to think of EXE/DLL/PowerShell/VBA/HTA as output formats or delivery wrappers around the configured Beacon than as different Beacons.

Cobalt Strike separates delivery packages from payload type. The course menu includes HTML Applications and MS Office macros as delivery packages, alongside staged and stageless payload generators. Other supported output forms include Windows EXE/DLL artifacts, scripts, and raw code. The exact choices depend on the package and Cobalt Strike version.

6.1 Exit function

The generated artifact may need an exit behavior appropriate to how it runs:

• Process: terminate the whole process when the artifact exits.
• Thread: terminate only the current thread, which can be appropriate when the Beacon was injected into an existing process.

This is an execution-context choice, not a universal rule. The artifact, injection method, host process, and desired lifetime all matter.

6.2 OPSEC is a set of hypotheses

Operational security is not just "avoid being found." Consider what defenders can observe: files, process ancestry, network traffic, memory allocation, permissions, proxy logs, authentication, and timing.

RWX memory can be anomalous. Cobalt Strike's stage.userwx option controls RWX use in the reflective loader; false asks it to avoid RWX for the Beacon DLL. In this mode, the guide describes executable code sections as RX and data sections as RW. Some sleep-mask paths temporarily change a code section from RX to RW, then back to RX after masking. Exact protections depend on the loader, profile, artifact, and version; this is not a guarantee that every stageless artifact follows one fixed RW-then-RX sequence.

6.3 Artifact Kit templates

The Artifact Kit is the source framework Cobalt Strike uses for its generated EXE and DLL artifacts. It supplies stage-zero templates; Cobalt Strike provides Beacon shellcode and metadata, and a selected template packages and starts that content. The generated artifact is distinct from Beacon itself.

flowchart LR
  B["Beacon shellcode + metadata"] --> T["Artifact Kit stage-zero template"]
  T --> A["Generated EXE/DLL artifact"]
  A --> F["Static file inspection"]
  A --> R["Execution creates a separate runtime-telemetry surface"]

Template code in the file can be reviewed separately from Beacon's later memory, process, and network behavior. Output types and template behavior vary by kit configuration and Cobalt Strike version. A scan result applies only to the exact file and scanner configuration tested; it does not establish that runtime behavior is safe or undetected.

For the related static and runtime detection models, see 4. AV or EDR Defence Evasion and 4. AV or EDR Defence Evasion.

7. Interacting with Beacon

7.1 A Beacon check-in

When a new Beacon checks in, the client can show an event-log entry and a new session in the table or graph view.

Beacon metadata is carried within the configured C2 protocol. For HTTP/S, it may be represented in parts of the request such as the URI, headers, or cookies. The exact location depends on the listener configuration. DNS Beacons may show less metadata initially because of their constrained bandwidth.

7.2 Session table fields

• external: external address observed by the Cobalt Strike web service; this is not necessarily an address Beacon independently reported.
• internal: internal address associated with the target computer.
• listener: the egress listener used by the Beacon.
• user: user account under which the Beacon process runs.
• computer: target hostname.
• note: operator-supplied note.
• process: process hosting Beacon.
• PID: process identifier.
• arch: Beacon architecture, such as x86 or x64.
• last: time since the last Beacon communication.
• sleep: configured Beacon sleep interval.

The monitor icon represents an integrity context in the client. The original notes describe blue as medium integrity and red as high integrity, with an asterisk appended for an elevated account. Treat these UI indicators as client metadata, not as a complete privilege or access assessment.

7.3 Tasking and the job queue

Double-clicking a Beacon or selecting Interact opens its interaction tab. help lists commands, and help <command> provides help for one command.

beacon> help
beacon> help getuid

When a command is entered, the client places a job in the Beacon's queue. Multiple jobs can be queued while waiting for the next check-in. When Beacon checks in, the Team Server sends available jobs in the response; Beacon processes them and returns results.

Conceptually:

Operator queues task
        │
        ▼
Team Server stores task
        │
        ▼
Beacon checks in and receives task
        │
        ▼
Beacon executes task and returns result
        │
        ▼
Client displays result

Example from the original notes:

[02/26 15:52:55] beacon> getuid
[02/26 15:52:55] [*] Tasked beacon to get userid
[02/26 15:52:59] [+] host called home, sent: 8 bytes
[02/26 15:52:59] [*] You are DESKTOP-FGSTPS7\Attacker

The example is a lab transcript. It should not be interpreted as a recommendation to run commands outside an authorized environment.

8. Session graph view

The table view shows session metadata. The graph view is useful for understanding parent/child Beacon relationships, especially when peer-to-peer Beacons are involved.

In the original course material, the graph conventions are:

• dashed green: HTTP/S egress;
• solid yellow: SMB peer-to-peer;
• dashed yellow: DNS egress; and
• solid green: TCP peer-to-peer.

The exact colors are a UI convention. The important relationship is whether a Beacon communicates directly with the Team Server or through a parent Beacon.

9. Review prompts and remaining gaps

These are the questions I still want to be able to answer confidently:

• Which parts of a listener are generated into Beacon, and which are supplied by the Team Server at runtime?
• What exact metadata is visible for each protocol in the version used for the CRTO lab?
• How does a redirector change the observable network path and logs?
• Which payloads in the current Cobalt Strike version are staged by default, and which post-exploitation actions deliver full payloads?
• What PE-loading work is performed by the selected artifact or user-defined loader?
• What evidence would a defender see for each artifact type: file, process, memory, DNS, proxy, and C2 logs?
• What changes when a Beacon is an egress Beacon versus an SMB or TCP peer?
• In a staged flow, which exchange happens before Beacon's Team Server key-based protections apply?
• What changes in the trust and delivery path when the full Beacon is already in a stageless artifact?
• Why are the lesson's 890-byte and 307,200-byte figures examples rather than fixed payload sizes?
• What does stage.userwx tell you, and what does it not prove about the whole execution path?

The shortest version to remember

Client    = operator interface
Server    = controller, logging, and infrastructure
Beacon    = post-exploitation agent
Listener  = Beacon communication configuration
Stager    = small bootstrap that retrieves a separate stage
Stage     = full Beacon payload (with Team Server public key)
Stageless = full Beacon included; no separate stage retrieval
Loader    = prepares the Beacon image to run
Artifact  = package or wrapper used to deliver or execute it

This is a living study note. Sources and understanding may change as it is reviewed.
